Dual Face RRU Mount (Leg Mount)

ARU.201

Features

Double Sided RRU Mount
Includes Leg Mount Clamps (Round/Angle Leg)
Multiple slotted design allows for versatile mounting solutions based on RRU mount hole pattern

Specifications

Structure Weight: 50 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

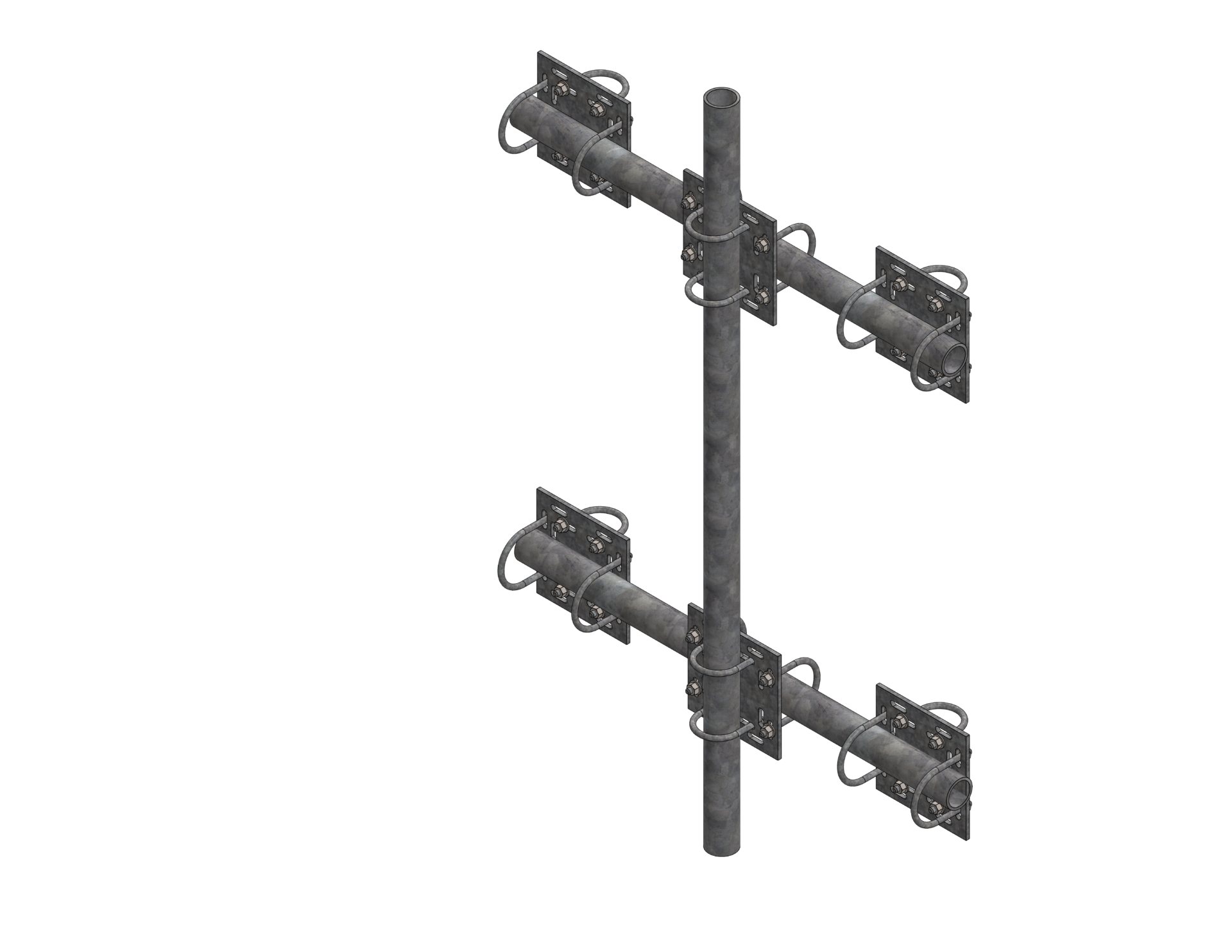

Heavy Duty Single Pipe Antenna Flush Mount Includes 4″ OD x 7ft Mount Pipe Leg Mount Style

AMW.009

Features

Single MW Face Mount (4ft Max Tower Face Width)
Antenna Pipe (2.88″ OD x 6′) & Boom Pipes Included
3ft – 4ft MW Dish Capacity

Specifications

Structure Weight: 180 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

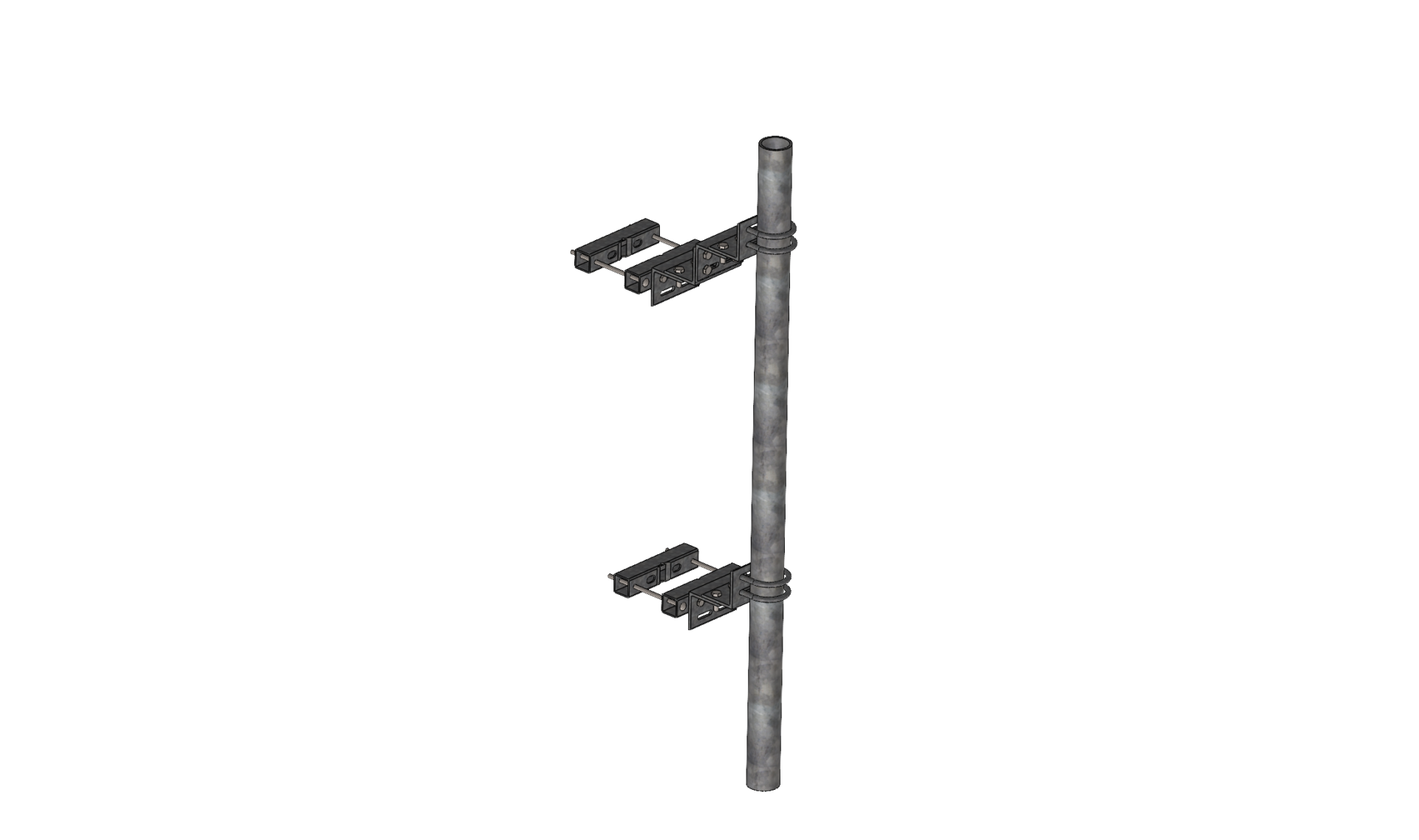

Antenna Flush Mount Single (Tapered HD)

AFM.006

Features

Heavy Duty Single Pipe Antenna Flush Mount
Includes 4″ OD x 7ft Mount Pipe
Leg Mount Style

Specifications

Structure Weight: 160 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

Tapered/Non-Tapered Antenna Leg Mount

AFM.002

Features

Tower Leg Mount
Adjustable taper angle
Includes 4.5″ OD x 6ft Long Antenna

Specifications

Structure Weight: 130 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

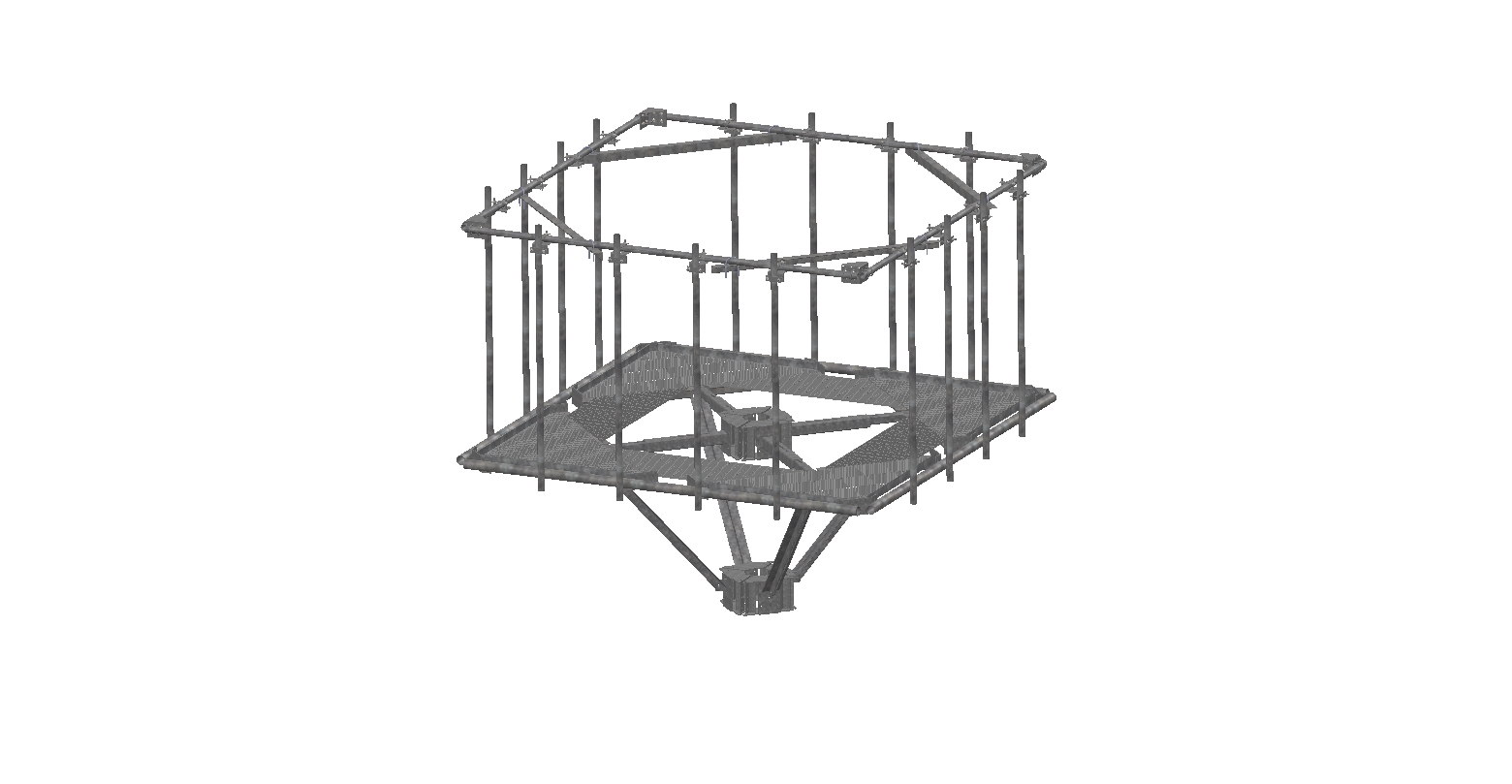

4-Sector Platform Mount (12′-6″ Face Width)

ASP.004

Features

Compression Collar Mount 4-Sector Platform
(4) Antenna Mounts per sector
Walkable Grade 3 Mesh on Platform Top
Corner 1″ x 3/16″ Bar Grating Type 19-4 Bar Grating
Includes Handrail Kit mounted to antenna pipes

Specifications

Structure Weight: 3,400 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

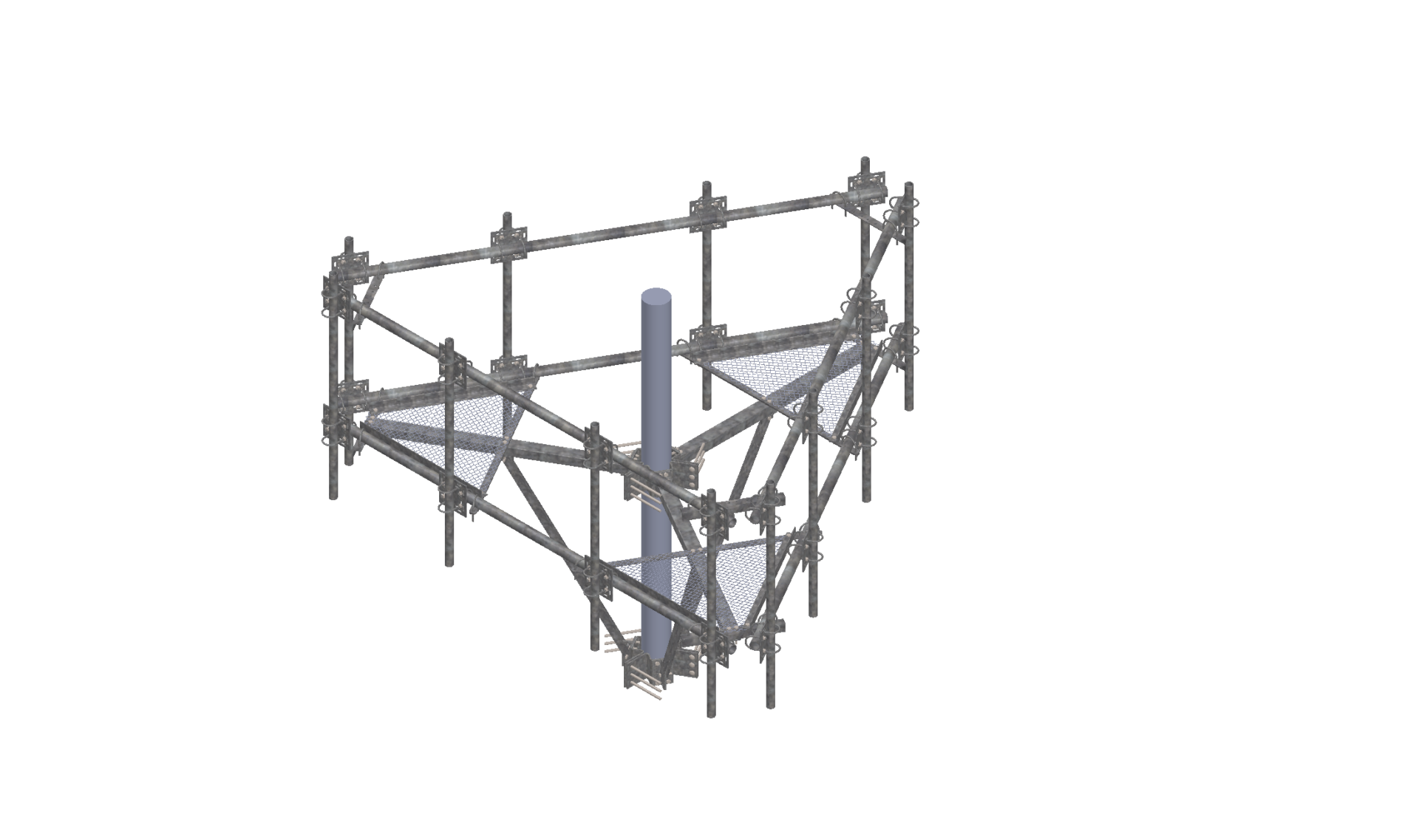

3-Sector Platform Mount (12′-6″ Face Width), 12-Antenna Pipes

APM.001

Features

Compression Collar Mount 3-Sector Platform
(4) Antenna Mounts per sector
Walkable Grade 3 Mesh on Platform Top
Includes Handrail Kit mounted to antenna pipes

Specifications

Structure Weight: 2,200 lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

Six Sector Monopole Pinwheel Collar Mount

APW.006

Features

Compression Fit Collar Tri-Sector Mount (12″ – 30″ Pole Diameter)
3ft Standoff T Booms
Includes (6) Antenna Pipes & (3) RRU Pipes
Includes Antenna T Boom Tie Backs

Specifications

Structure Weight: 1,200 lbs
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

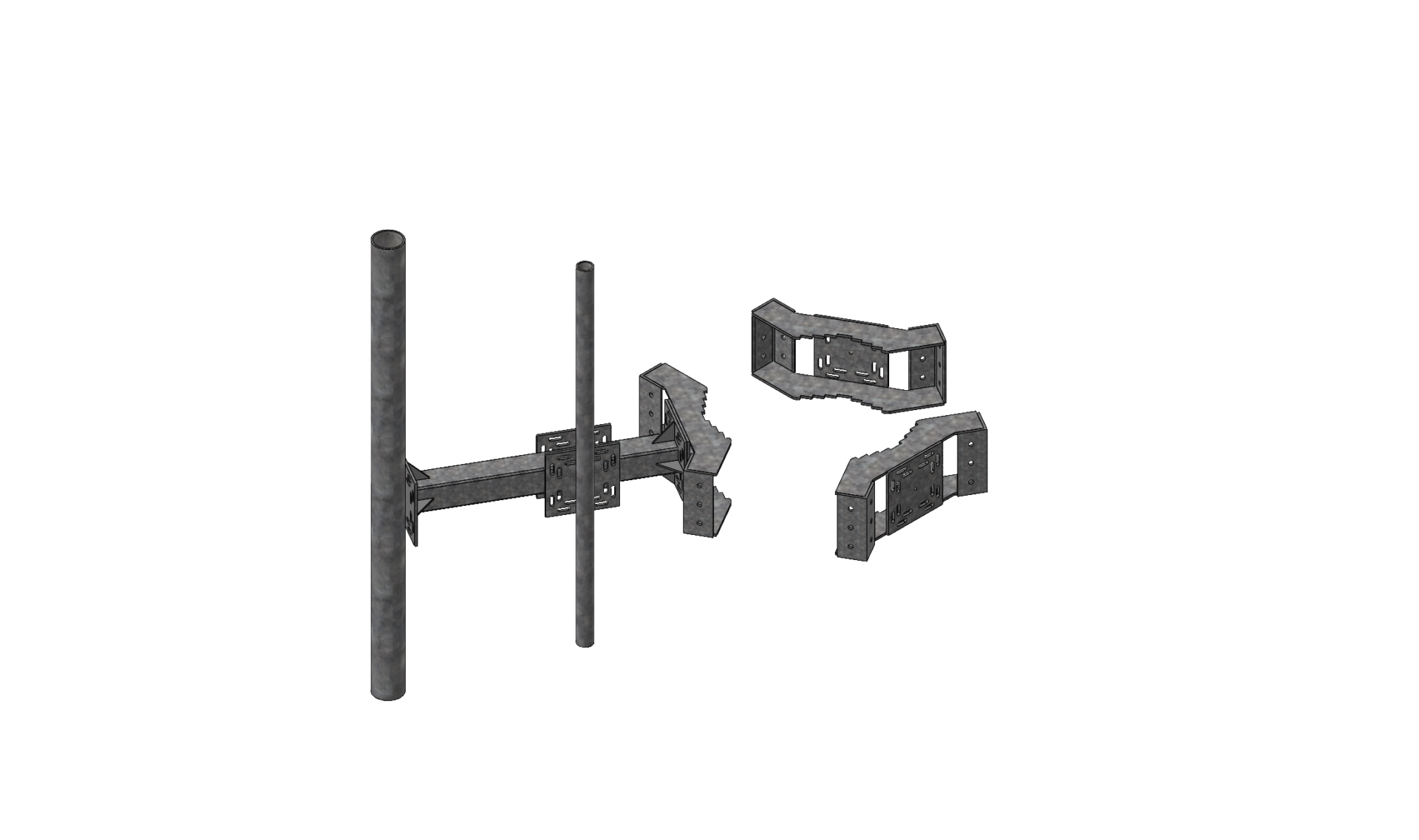

MW Collar Mount 3ft Standoff

AMW.001

Features

Compression Fit Collar Tri-Sector Mount (12″ – 30″ Pole Diameter)
3ft Standoff T Booms
Includes (1) MW Mount Pipe & (1) Tie Back Pipe

Specifications

Structure Weight: 350lbs
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

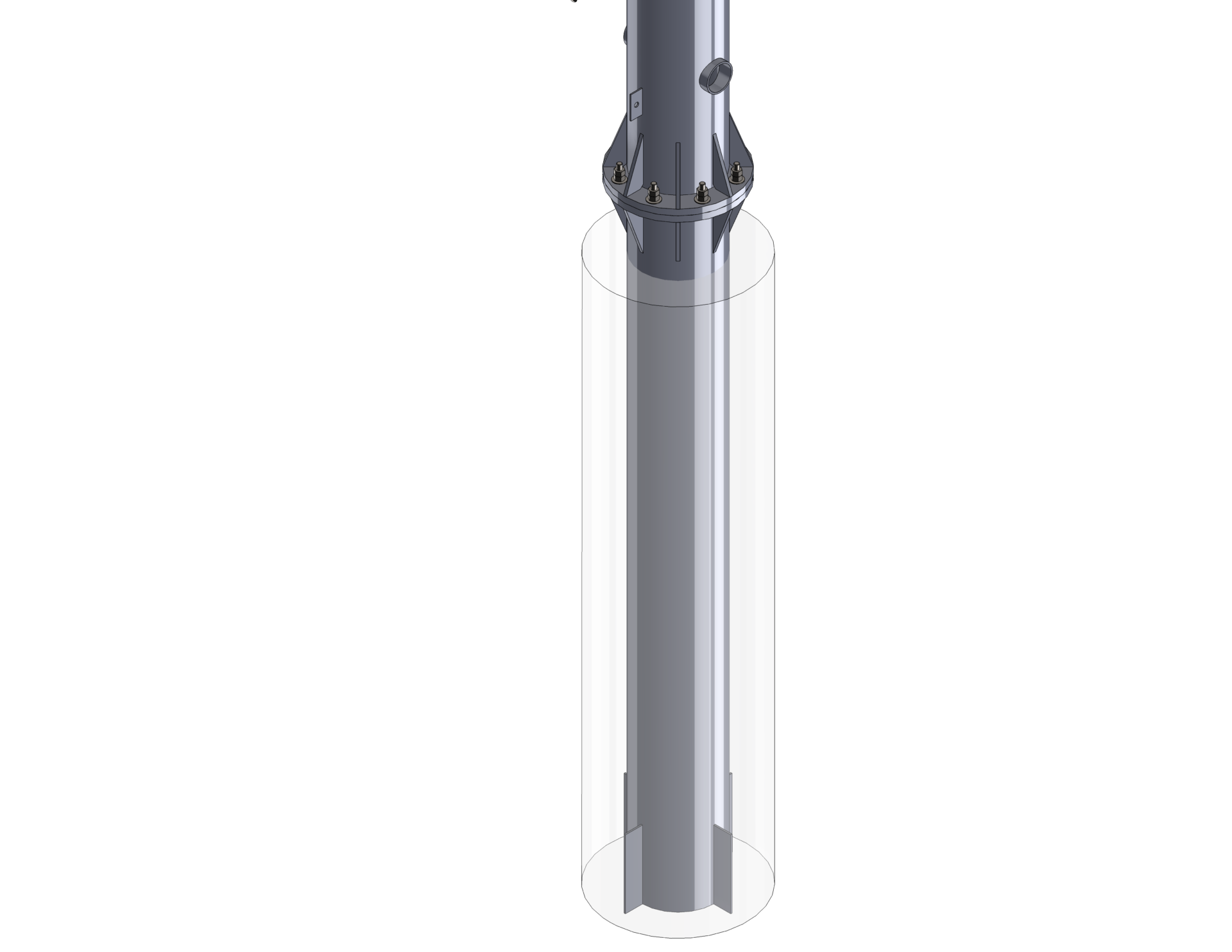

9ft Embedded Foundation

AMP.001

Features

Standard Embedded Foundation for All Micropole Heights
Bolt on main section flange plate
Anti-Rotation Fins Base
Foundation type does not require concrete base

Specifications

Structure Weight: 500 lbs
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

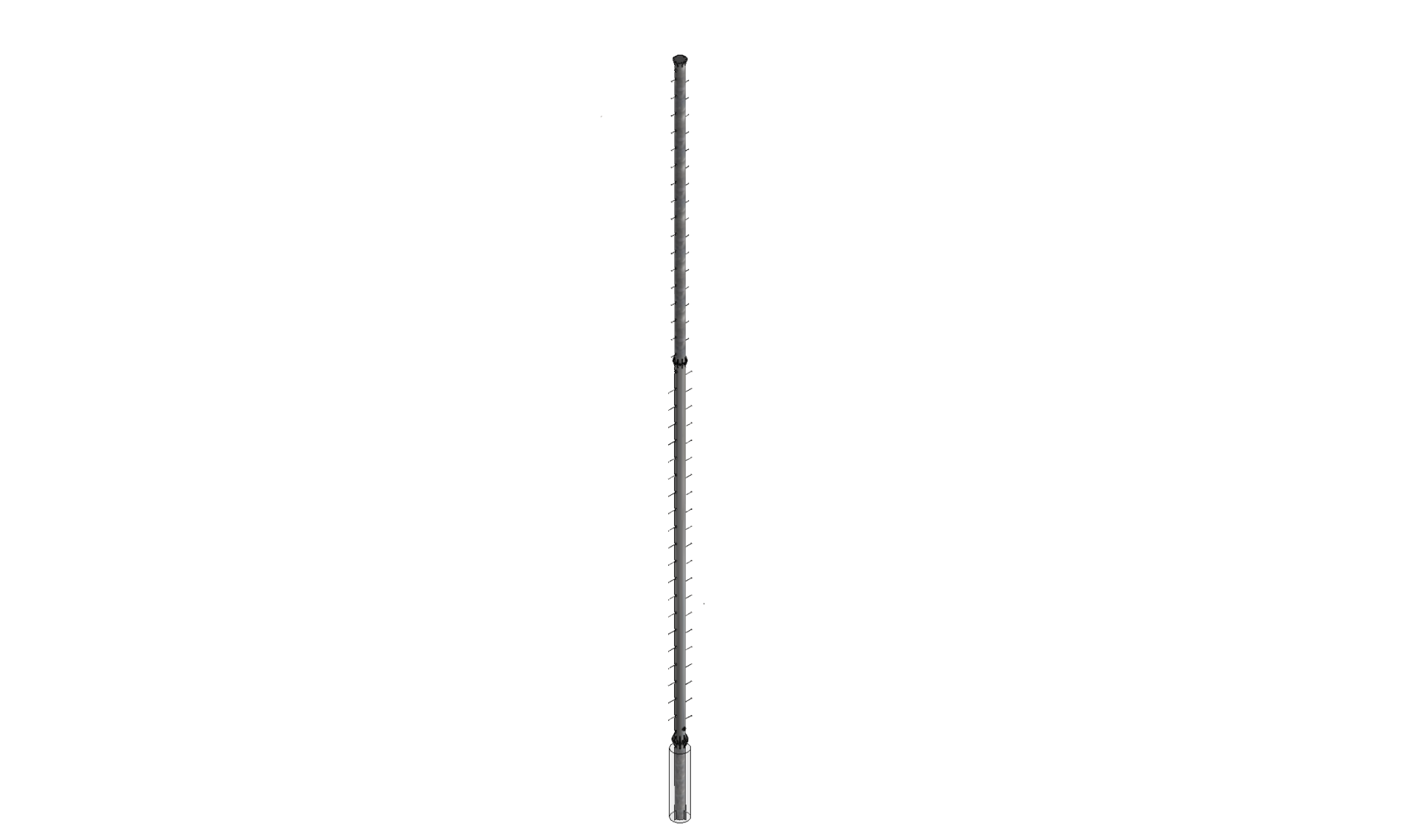

80ft Micropole 12.75″ OD

AMP.080

Features

80ft Micropole Optional Foundation (Embedded/Anchored)
Modular design allows for future height extension

Specifications

Structure Weight: 3,200 lbs
Design Loading: 10sqft RAD Level (Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H
