AMP.080
Features
80ft Micropole Optional Foundation (Embedded/Anchored)
Modular design allows for future height extension
Specifications
Structure Weight: 3,200 lbs
Design Loading: 10sqft RAD Level (Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H

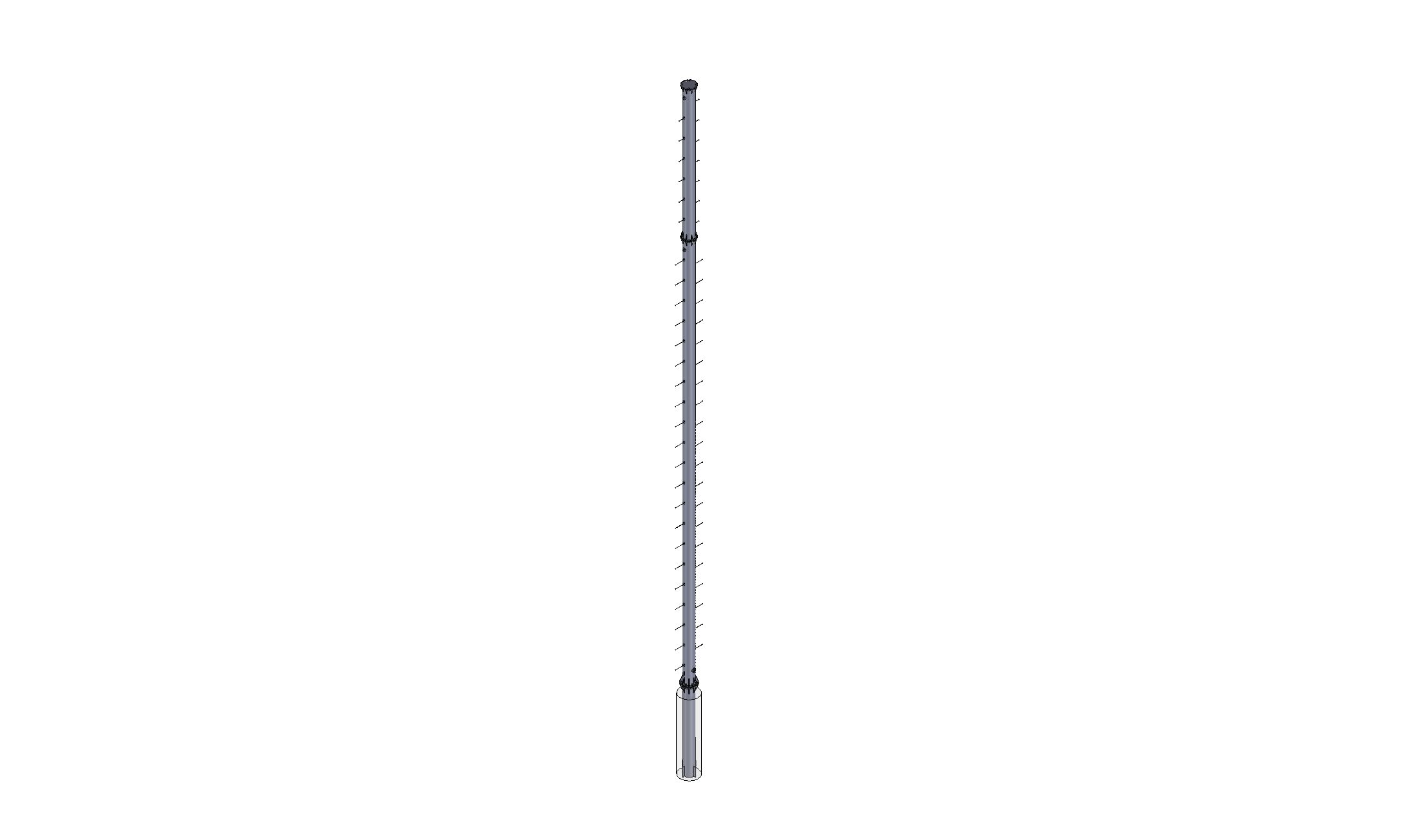

AMP.060
Features
60ft Micropole Optional Foundation (Embedded/Anchored)
Modular design allows for future height extension
Specifications
Structure Weight: 2,500 lbs
Design Loading: 10sqft RAD Level (Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H

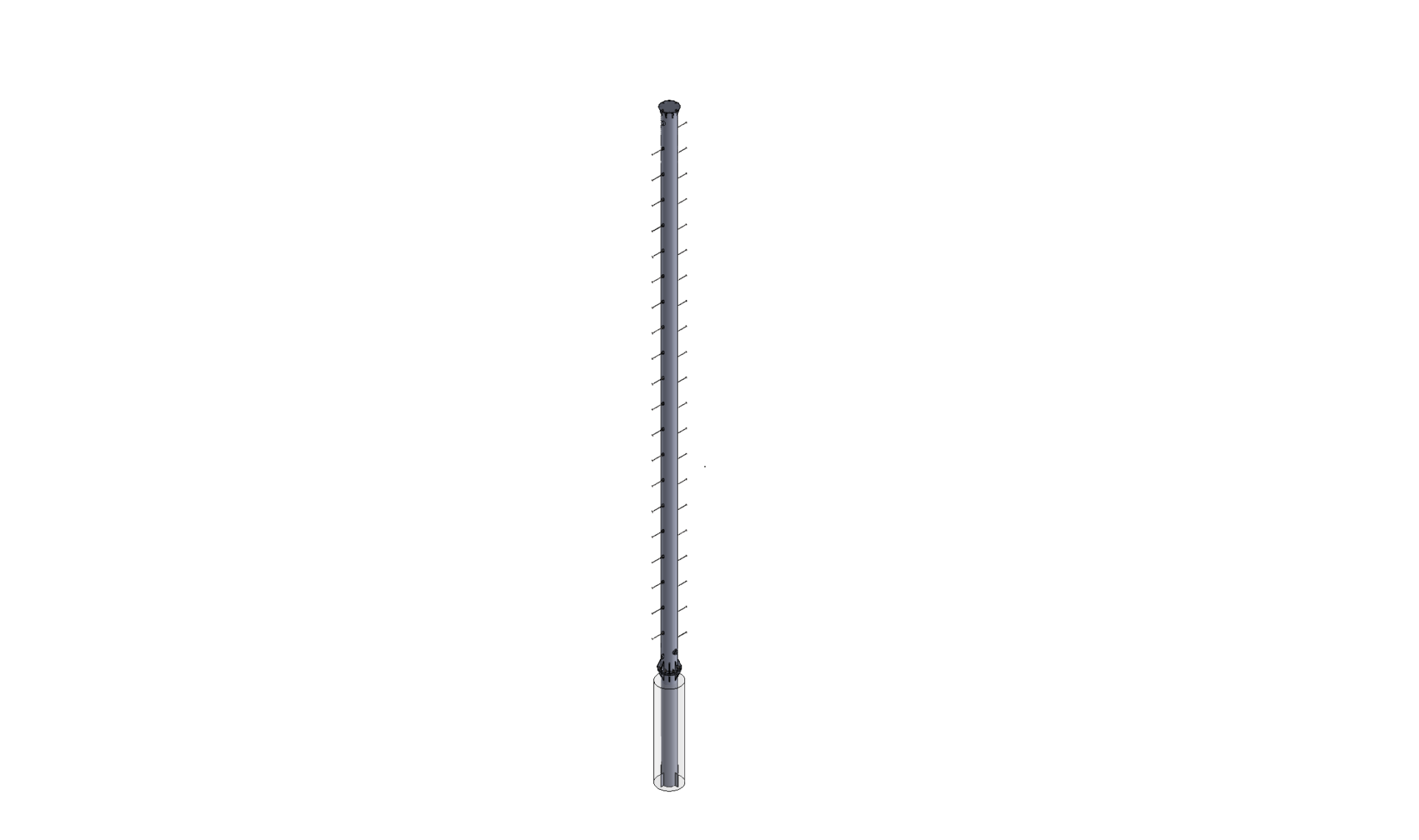

AMP.045
Features
45ft Micropole Optional Foundation (Embedded/Anchored)
Modular design allows for future height extension
Specifications
Structure Weight: 2,000 lbs
Design Loading: 10sqft RAD Level (Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H
ALP.004
Features
3/4″ x 10ft Copper Clad Lightning Rod
Specifications
Structure Weight: 35 lbs
Steel Grade: N/A
Galvanized Finish Standard: N/A
CSA Design Standard: N/A
TIA Design Standard: N/A
ALP.003
Features
20ft Ladder Section with Safety Rail Kit
Standard 12″ Spacing per rung
Solid Rod Welded Ladder Assembly
Specifications
Structure Weight: 135 lbs
Steel Grade: N/A
Galvanized Finish Standard: N/A
CSA Design Standard: N/A
TIA Design Standard: N/A
ALP.002
Features
Below Grade Grounding Kit
Includes 15ft #6AWG Bare Copper Strand Wire
Includes All Connectors
Specifications
Structure Weight: 75 lbs
Steel Grade: N/A
Galvanized Finish Standard: N/A
CSA Design Standard: N/A
TIA Design Standard: N/A
ALP.001
Features
(24) 1.5″ x 72″ B7 Anchors
Standard Anchored Foundation Kit for All Modular Heights
Specifications
Structure Weight: 890 lbs
Steel Grade: N/A
Galvanized Finish Standard: N/A
CSA Design Standard: N/A
TIA Design Standard: N/A
ALP.120
Features
6 Section Slip Fit Macro Monopole
Modular design allows for future height extension
Specifications
Structure Weight: 19,100 lbs
Design Loading: (2) LTE RAD Levels (Top 16ft Elev.)
(1) MW Level supports (2) MWs
(23ft from Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Radial Ice: 40mm
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H
ALP.106
Features
5 Section Slip Fit Macro Monopole
Modular design allows for future height extension
Specifications
Structure Weight: 17,000 lbs
Design Loading: (2) LTE RAD Levels (Top 16ft Elev.)
(1) MW Level supports (2) MWs
(23ft from Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Radial Ice: 40mm
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H

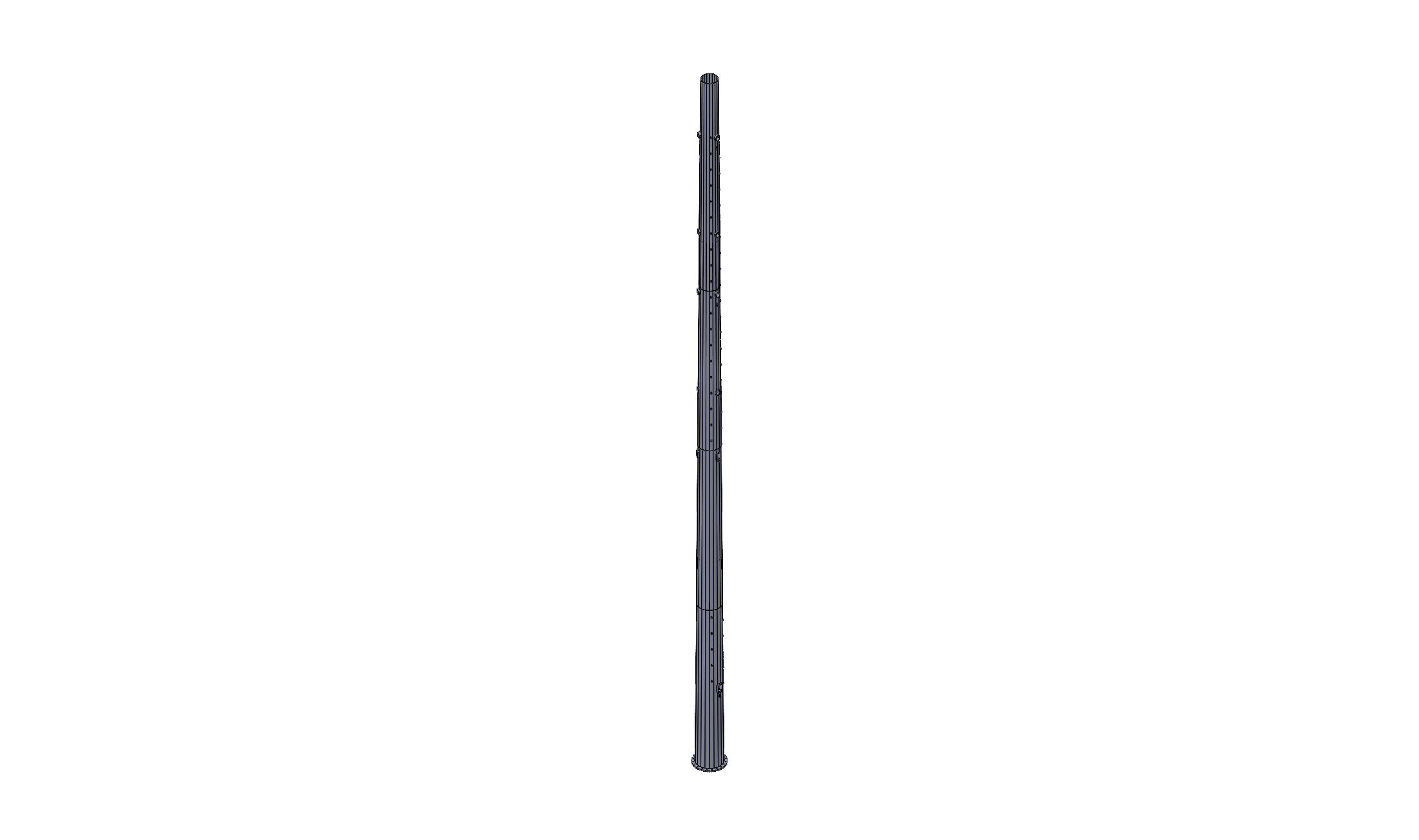

ALP.86
Features
4 Section Slip Fit Macro Monopole
Modular design allows for future height extension
Specifications
Structure Weight: 14,700 lbs
Design Loading: (2) LTE RAD Levels (Top 16ft Elev.)
(1) MW Level supports (2) MWs
(23ft from Top Elev.)
Design Specifications: Ultimate Wind: 450pa
Service Wind: 450pa
Radial Ice: 40mm
Steel Grade: ASTM A572-50
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-222-H
