Penetrating Anchor Stub
ABM.210
Specifications
Structure Weight: 30lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053
Category: Telecom

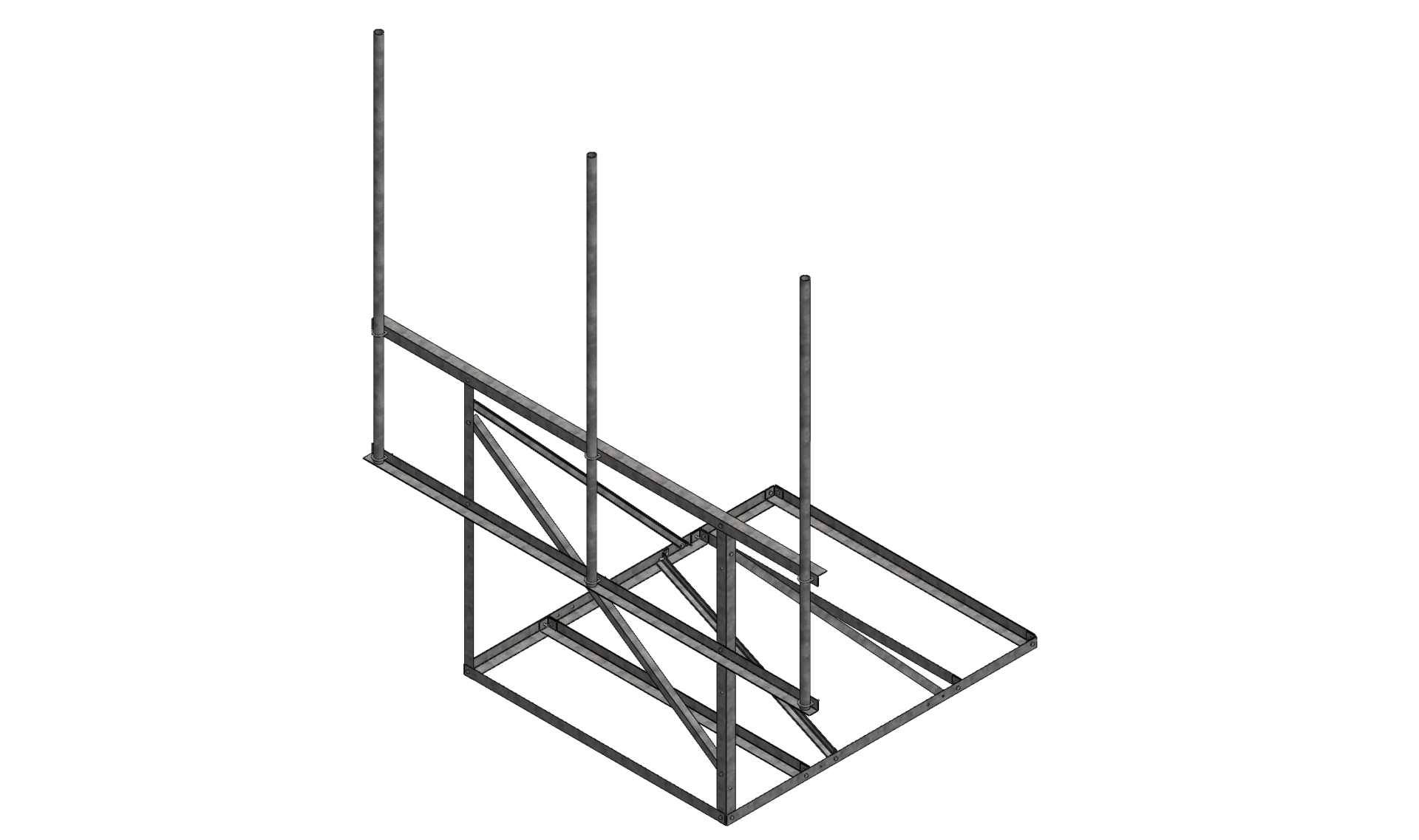

HD 84″ x 100″ Ballast Mount with (3) 2 3/8″ x 10ft Pipes
ABM.301
Features
Tri-Sector Antenna Pipes (2.375″ OD x 10ft Pipes)
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 590lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053
HD 13ft x 13ft Dual Antenna Ballast Mount
ABM.201
Features
Dual Sector Antenna Pipes
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 474lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

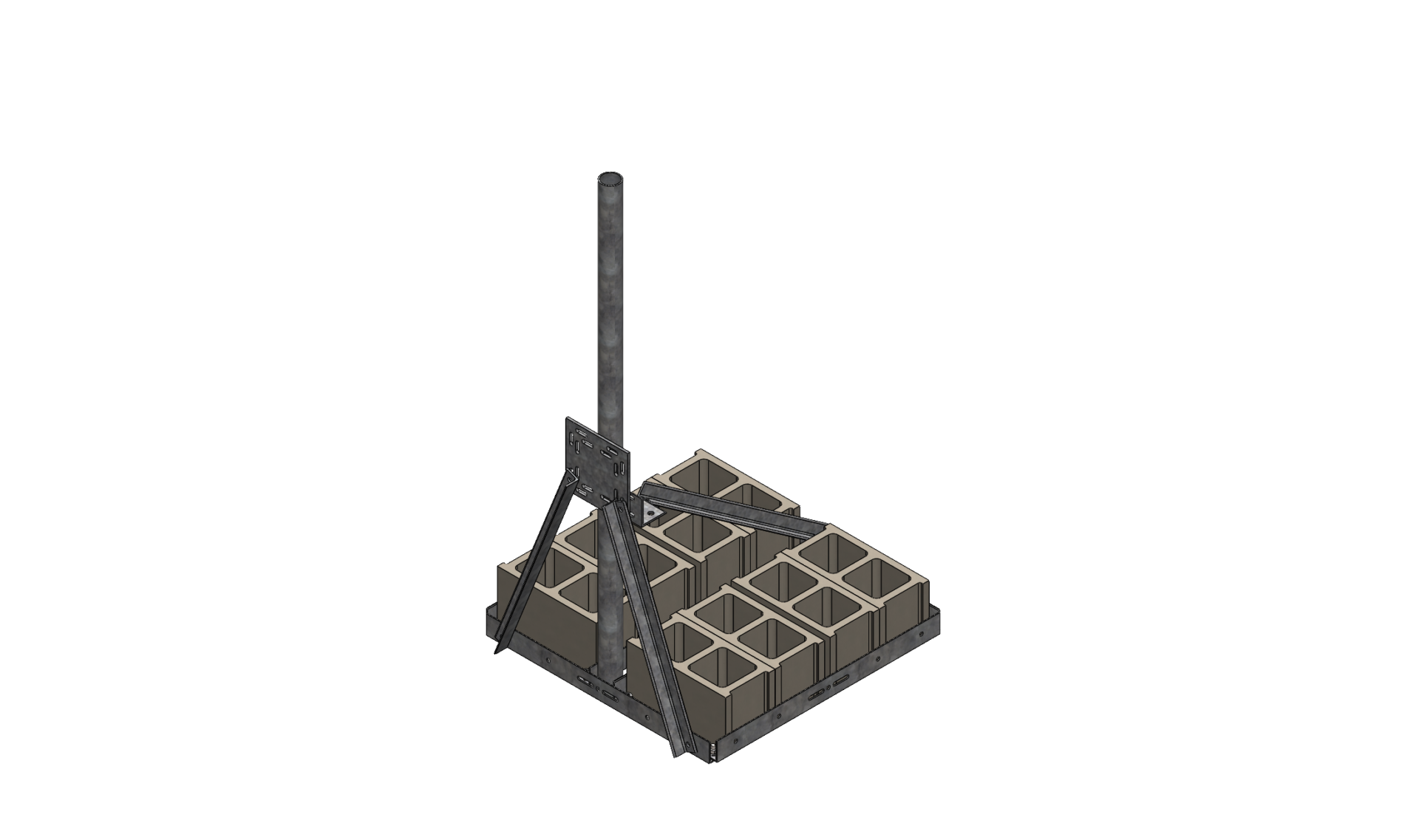

3ft x 3ft Non-Penetrating LD Ballast Mount 2.88″ OD x 6ft Mount Pipe
ABM.009
Features
Light Duty Single Antenna Pipe 2.88″ OD x 6ft
Ideal for RRU Mounts
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 140lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

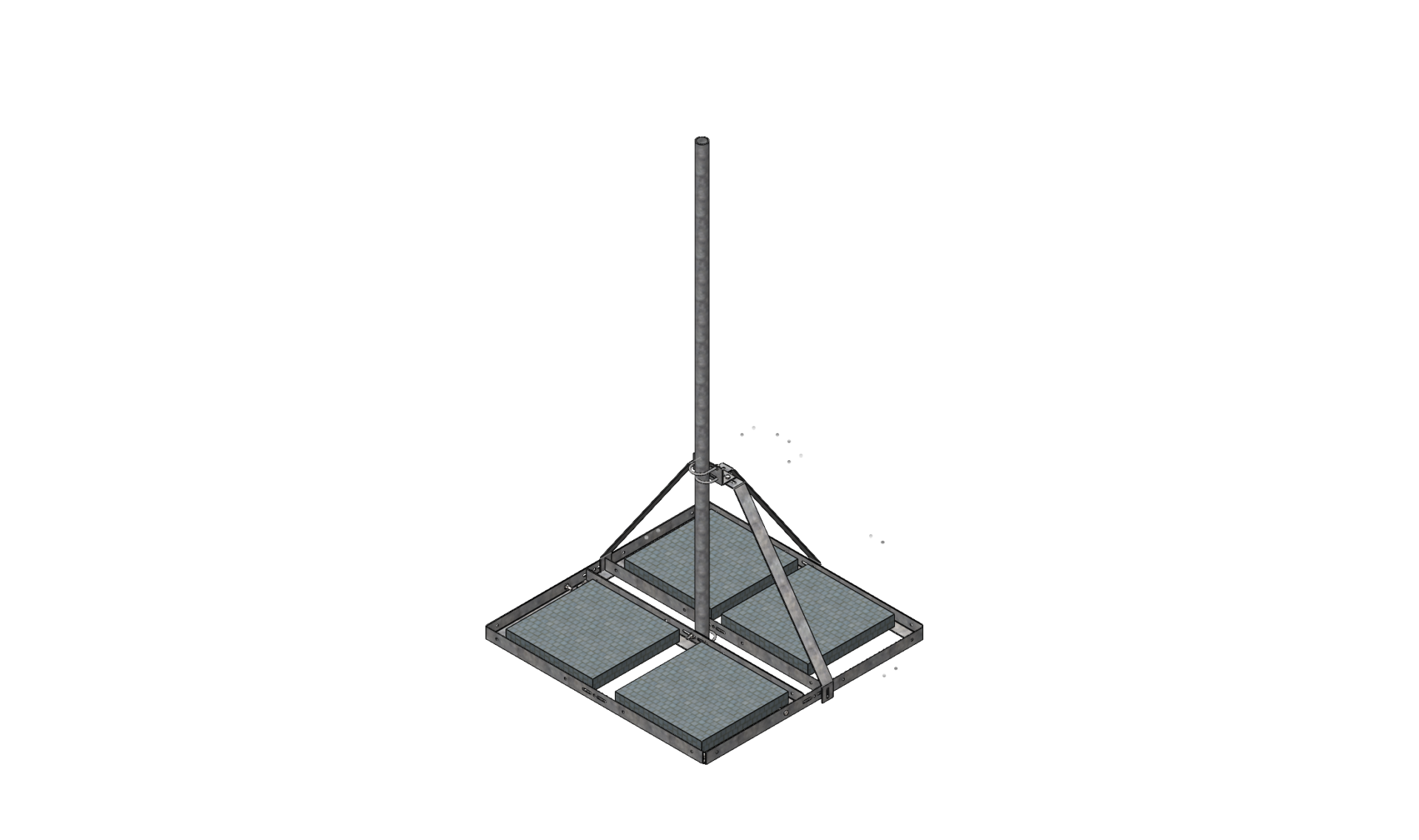

5ft x 5ft Non-Penetrating Ballast Mount with 10ft Extension Pipe
ABM.007
Features
Light Duty Single Antenna Pipe 2.375″ OD x 10ft
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 219lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

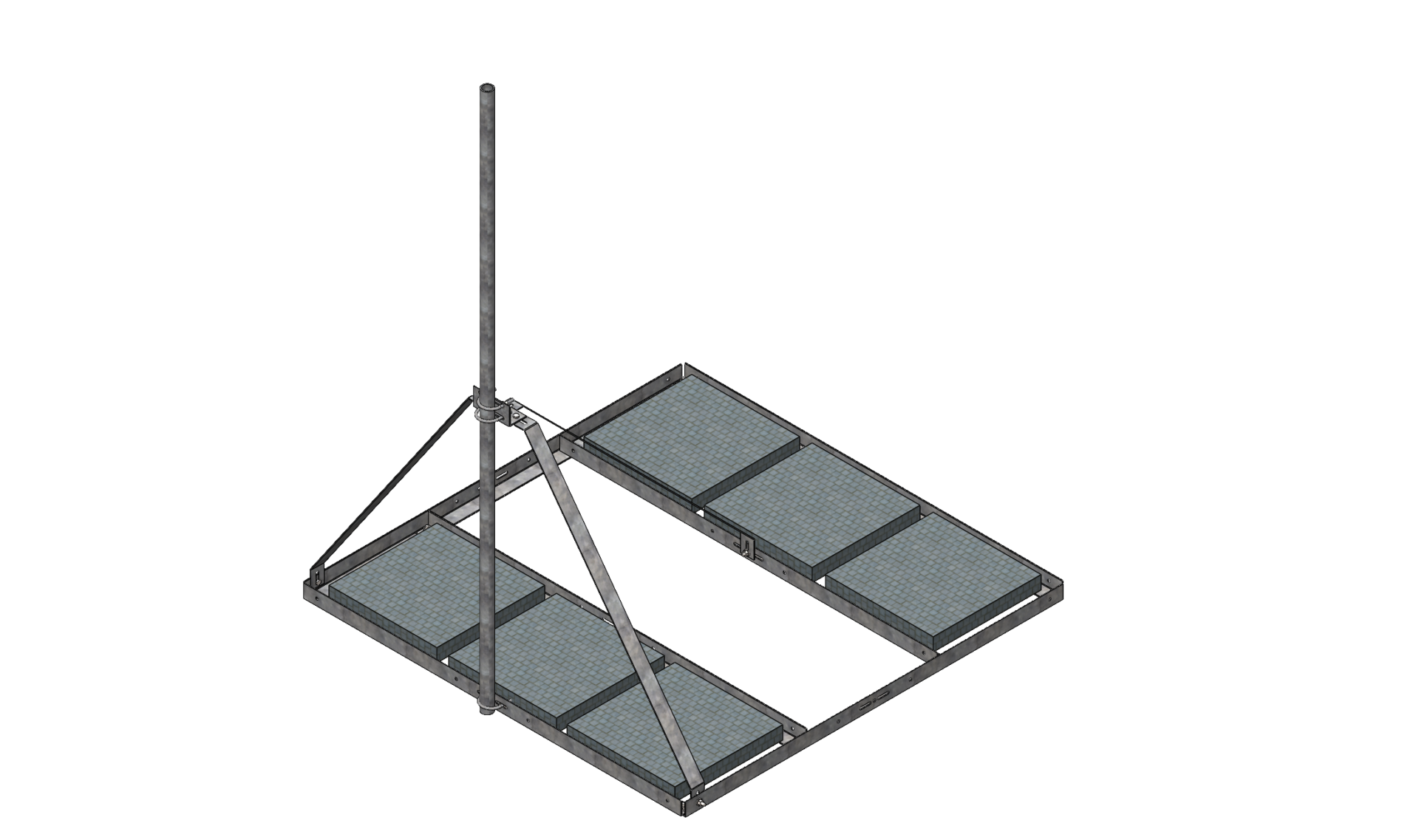

7ft x 7ft Non-Penetrating Ballast Mount HD 2.375″ OD x 10ft Mount Pipe
ABM.006
Features
Dual Sector Antenna Pipes
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 253lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

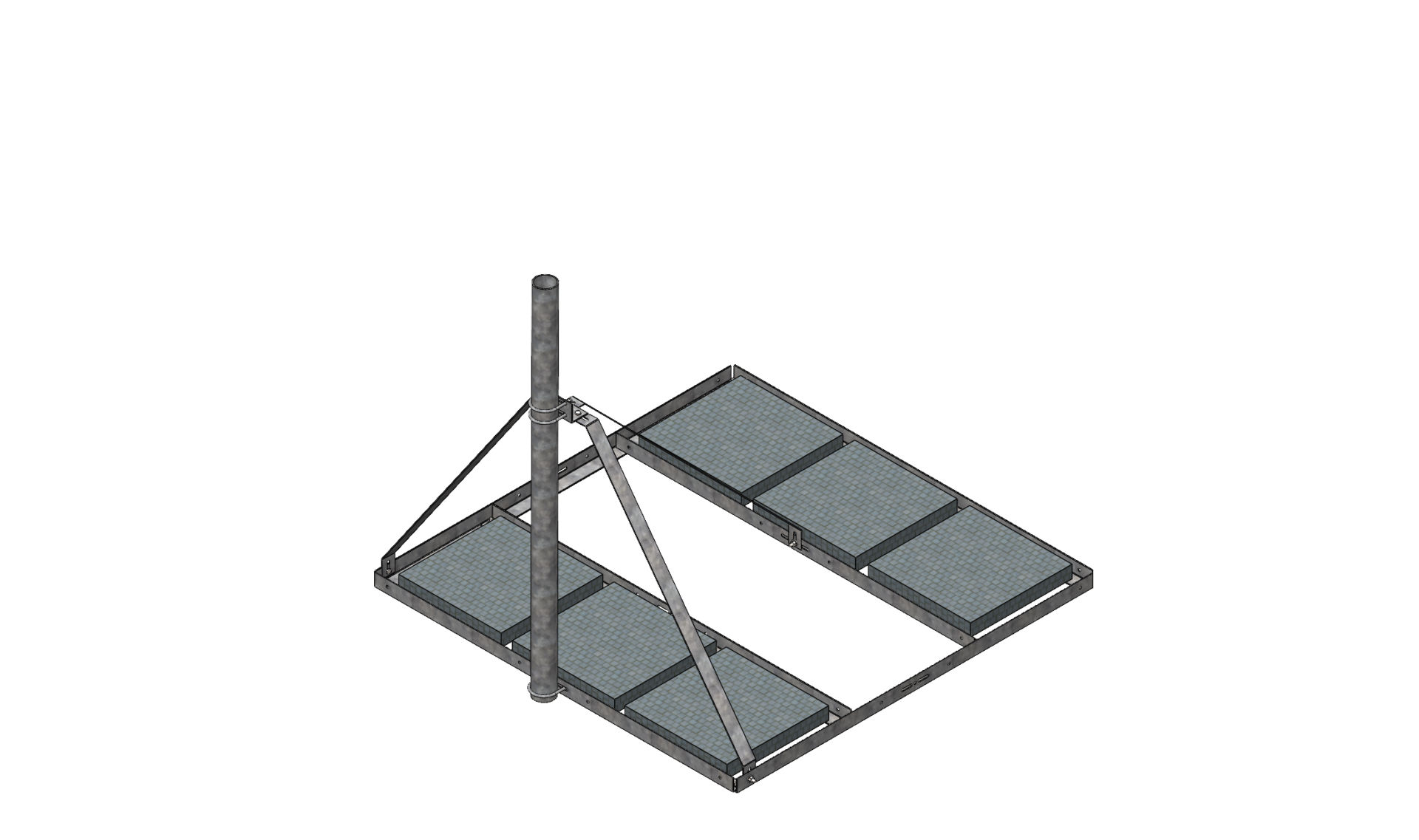

7ft x 7ft Non-Penetrating Ballast Mount HD 4.5″ OD x 7ft Mount Pipe
ABM.005
Features
Single HD 4.5″ OD x 7ft Antenna Pipe
Up to 6ft MW Dish Mountable
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 276lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

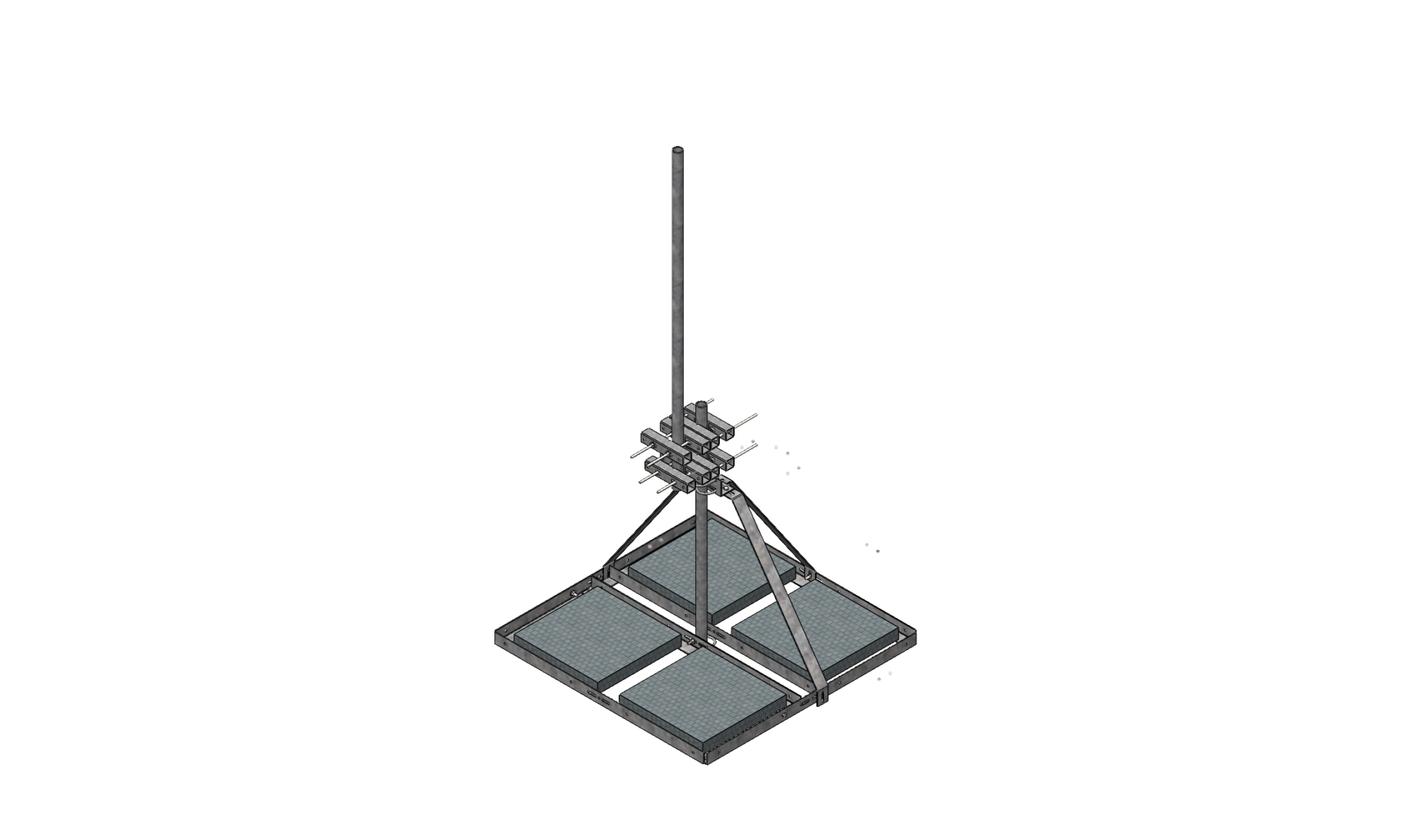

5ft x 5ft Non-Penetrating Ballast Mount with Optional 7ft Extension Pipe
ABM.004
Features
Light Duty Single Antenna Pipe
Optional Extension Pipe up to 15ft total length
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 260lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

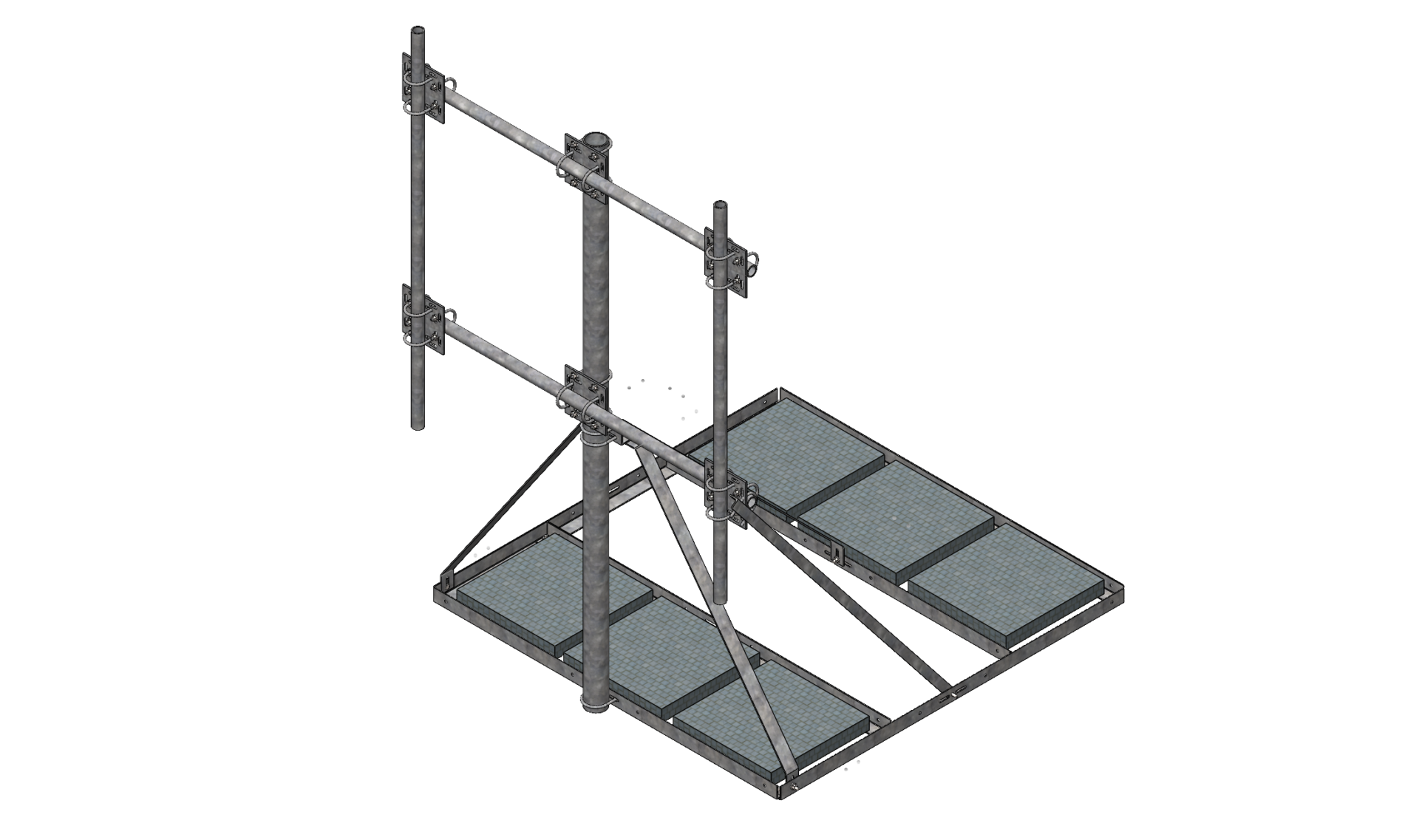

T-Style HD 7ft x 7ft Non-Penetrating Ballast Mount
ABM.003
Features
Dual Sector Antenna Pipes
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 474lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053

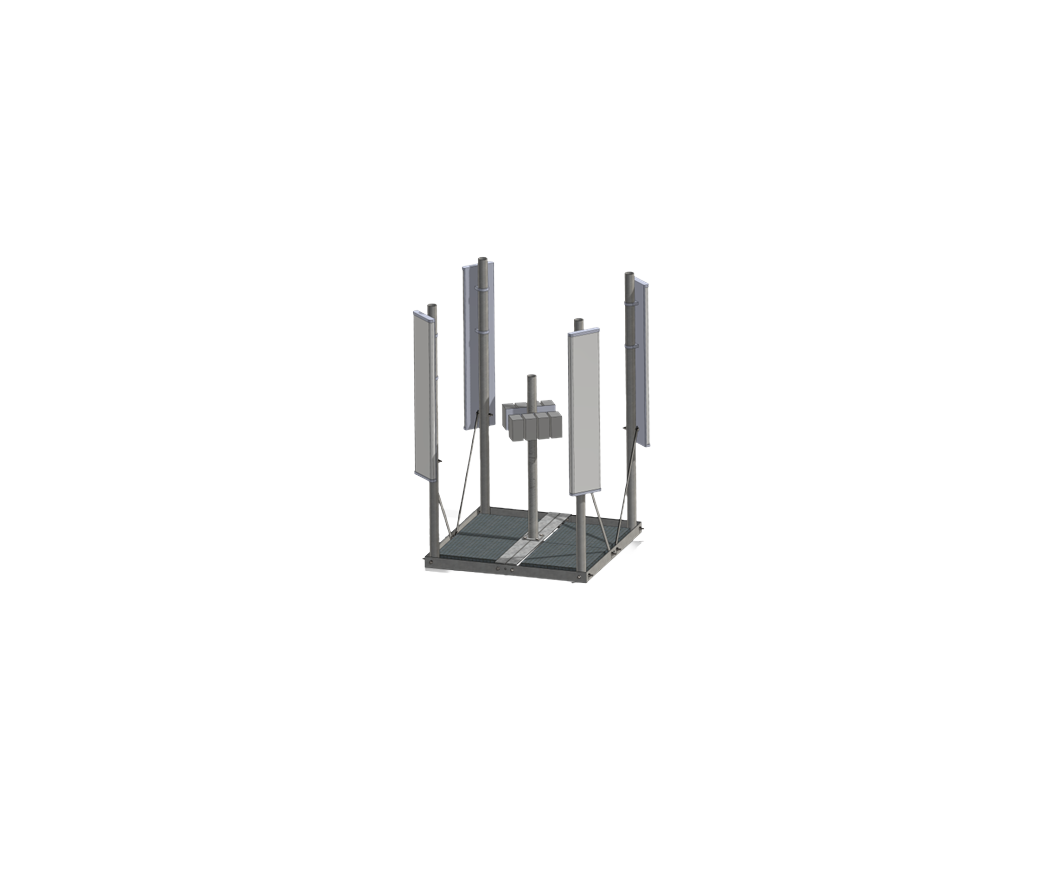

3ft x 3ft Non-Penetrating Ballast Mount (LD)
ABM.001
Features
Quad Sector Antenna Pipes
Bolt together assembly for ease of transportation
Uses standard 2′ x 2′ paver stones as ballast (Not Included)
Recommended use 1″ thick neoprene rubber mats (Not Included)
Specifications
Structure Weight: 175lbs
Steel Grade: ASTM A-36
Galvanized Finish Standard: ASTM A123
CSA Design Standard: CSA S37-24
TIA Design Standard: TIA-5053
