AFRM.400

Features

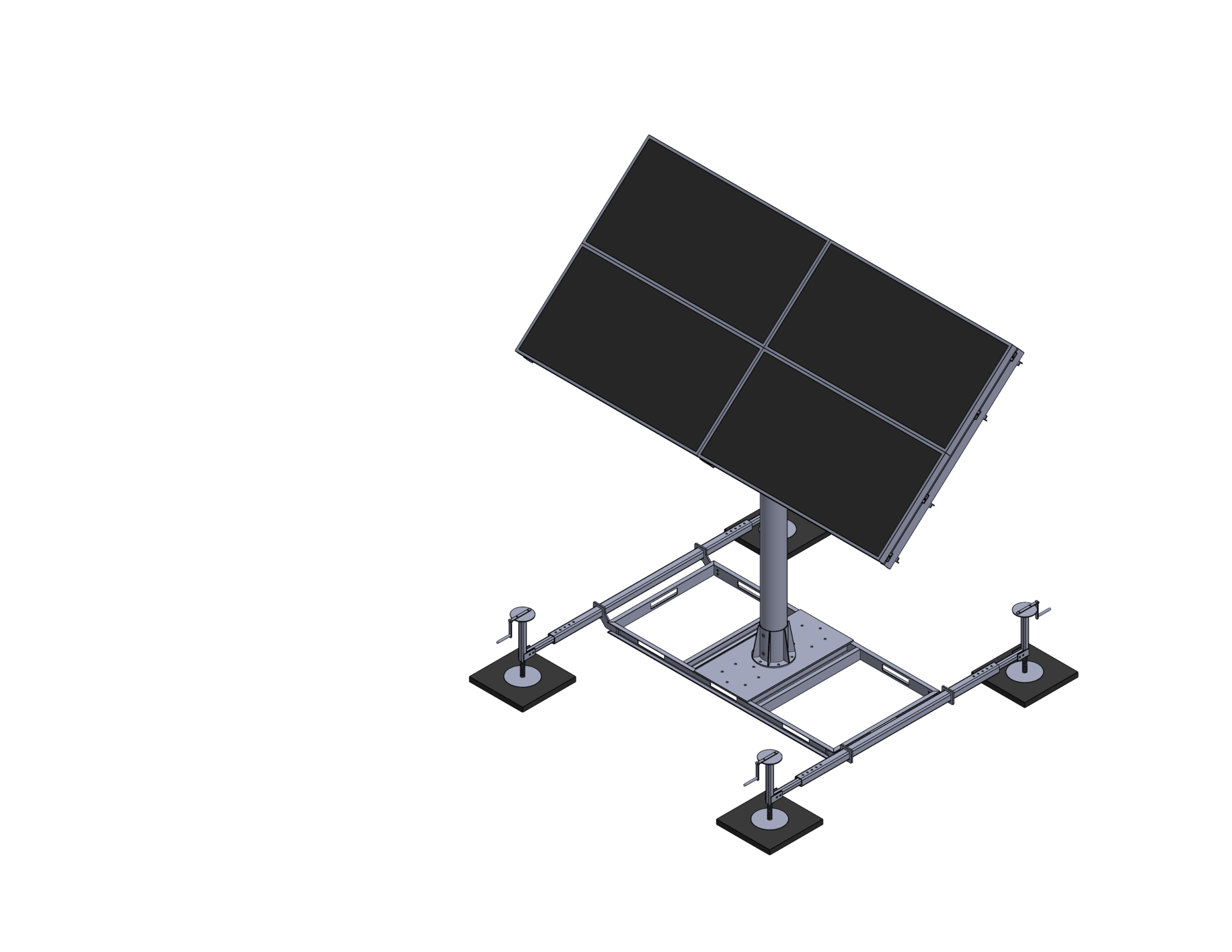

Quad Solar Panel Pole Mount on Base Platform
Platform footprint 8 1/2′ x 4′
Pole height 113″
Outrigger extension 36″ on each side of platform
18″ height adjustable leveling jacks
Platform capacity to fit (2) 48″ x 45″ battery packs
Ideal for remote installation on flat ground & compacted gravel
Panel orientation angle adjustable from 0 degrees to 28 degrees
Seats maximum panel size of 2500mm x 1200mm

Specifications

Frame Weight: 1.560 lbs
Steel Grade: ASTM A-36
Design Standard: ASCE 7-16
